Software downloads

Firmware for PDM-ETH module V2763.

Fine for configuration software Easy PDM-ETH V1.06 or newer

E.view software is an essential tool for configuring your ENERIUM power monitor and viewing the information from it.

This software can be used to:

• Program the communication parameters of the products (address, speed, parity, etc.) and the setup parameters (CT ratio, VT ratio, alarm thresholds, etc.)
• Configure the power monitors in the ENERIUM range remotely, via the RS485 network or Ethernet network, or via the local area network  with the optical head

• View all the quantities managed by the power monitor (1 s reading, averages, time/date-stamped min and max)
• Optimize multi-product management by creating and displaying the architecture of the electrical installation
• Process the data:
• Summary tables: simplified summary of the results, alarms log, compliance of statistics with EN50160, time/date-stamped events (dips, outages, overvoltages, etc.)
• Data export: alarms log, EN50160 statistics, voltage events (dips, outages, overvoltages, etc.) and waveforms, all in .CSV, .XLS or .TXT format

The Thyritop Power manager configuration software allows advanced setting of the synchronization module:

-synchronization settings in manual mode

-settings for current/voltage/power measurement and retransmission

-settings for current/voltage/power monitoring

The DTR Transfer software can be used to control the DTR8510 and DTR8511 ratiometer.

The DTR Transfer software is a tool for :

• Configuring the instruments,
• Downloading and viewing the data stored in the memory,
• Exporting the data into Dataview

Caution : DataView is not supplied with the software DTR

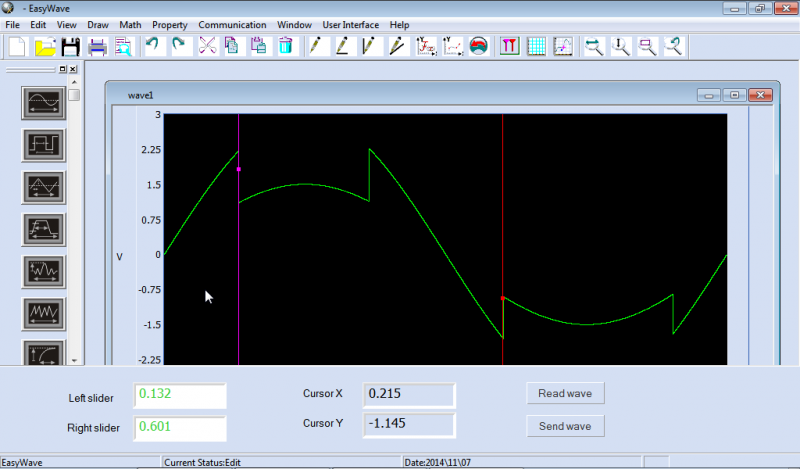

EASYWAVE software is designed in order to allow you to:

- retrieve the curves from the oscilloscope mode

- edit the waveforms using drawing tools

- transfer or import toward the ARBitary function (4 memory locations)

- consult from the library of files (sine, square, ramp, pulse, noise, exponential...)

The SL II Simple Logger II software allows you to control the Simple Logger II Loggers:

CL601, L101, L102, L111, L642, L261, L481, L562, AL834, ML912, ML914, L702, L404, L322, L432.

Simple Logger II software functions:

• Configure the devices,
• Download and display the data in memory,
• Make acquisitions in real time,
• Diplay recorded data on tables and / or graphs,
• Export data measurement to DataView (*.dvb files) or to a spreadsheet (Excel).

Attention : DataView is not provided with SL II software

For easy configuration of your sensor-head transmitters, particularly:

• Input: type of thermocouple or Pt100
• Output: temperature scale

 This software, previously supplied on CD-Rom in the programming kit (code LC59050-000), can now only be downloaded from this platform.

 Related products

 Required configuration:

• Processor > 1 GHz
• 1 GB RAM (32-bit) or 2 GB RAM (64-bit)
• 16 GB (32-bit) or 20 GB (64-bit) hard disk space

 Operating systems: Windows 7, 8 and 10

 Available languages:

• English
• French
• Germany
• Danish
• Italian
• Spanish
• Swedish
• Dutch
• Finnish

 Version: 8.05.1006

  Click on the link, unzip the folder, execute the .exe file and then follow the instructions

DataView v3.62.0016

Compatible instruments :

• PEL 102, PEL 103, PEL 104, PEL 105, PEL 106 power and energy loggers;
• F407 and F607 power and harmonics clamps;
• C.A 8220 and 8230 single-phase power analysers;
• Qualistar C.A 8331,8332, 8333,8334, 8335, 8435, 8436, 8336 and 8345;
• C.A 6526, 6532, 6534, 6543, 6547, 6549, 6550 and 6555 megohmmeters;
• C.A 6240, 6250, 6255 and 6292 micro-ohmmeters;
• C.A 6470N, 6471 and 6472 earth testers;
• C.A 6417 earth clamp;
• DTR 8510 ratiometer for transformers;
• Simple Logger II and L452;
• C.A 1110, 1227, 1246, 1821, 1822, 1510,1823, 10101, 10141 physical measurement devices;
• C.A 6116, 6116N and 6117 electrical installation testers

Languages

DataView is available in the following languages: German, English, Chinese, Spanish, French, Italian, Dutch, Polish, Swedish, Czech and Turkish

TACHOGRAPH software can be used for management of the data contained in the C.A 1727.

It has the following functionalities:

-          retrieval and display of the measurements recorded by the instrument,

-          the counting of the integral and the stemming of a curve (position and acceleration),

-          the filtration of a recording by moving average,

-          the exporting of the different curves acquired into EXCEL.

Systems : Windows XP, Windows Seven, Windows 8 & Windows 10

Language : 5 languages (French, English, German, Spanish, Italian)

Version : v2.0 compatible with C.A 1727

Designed for Metrix and Chauvin-Arnoux digital oscilloscopes, SX-METRO can be used to:

• acquire, record and process the curves from the oscilloscope;
• import screenshots;
• save or restore configurations ;
• view the curves in real time;
• communicate with the oscilloscope via an RS232 serial link, USB or TCP/IP network;
• transfer the data into Excel or into a text file;
• perform mathematical processing such as FFT of the signal viewed (windowing, enlargement of the result, Y scale of the FFT in Volt or dB, measurements by markers).

Oscilloscopes

- OX5022, OX5042, CA 922, CA 942
- MTX162, MTX1052, MTX1054,
- MTX3252, MTX3352,
- MTX3354,
- OX7042, OX7062, OX7102, OX7104, OX7202, OX7204,
- OX6062, OX6152, OX6202,
- OX2000, OX5100,
- OX8100, OX8050, OX8040, OX8062, OX8042,
- OX8620, OX8627, OX8020, OX8027, OX8032, OX8022.
- OXI6204
- OX9062, OX9102, OX9104, OX9302 BUS et OX9304 (with firmware version v1.10 or higher)

Languages
Version in 5 languages: English, German, Spanish, French and Italian.

To download the software SX Metro v6.3, you need to download the .Zip file, extract all the files and then run the Setup.exe file.

With Datalogger software for DL53, you will be able to :

Setup the instruments,

Download and display the trends,

Export data into Excel

Compatible with Windows 7, 8, 8.1,10 et 11

Ulys MCM Utility is the configuration and real-time display software for Ulys MCM

• Ulys MCM Utility allows users to configure the setting and check the data of each load very simply
• Read and Record the parameter settings for the Ulys MCM Utility software
• Load and Save the parameter settings from a file

• Scan the network to find the instruments' IP addresses
• Add or delete an instrument in the tree structure
• Modify the settings of the Ulys MCM (general settings and settings for each of the electrical feeders)
• View the TX/TX communication frames with the instruments

• Monitor the data measured by the ULYS MCM for each electrical feeder
• Display on a single screen all the quantities measured on all the electrical feeders
• Display the main information on the electrical feeders in graph form in real time
• Display the historical data concerning the electrical feeders in graph format

Software Machine Link 2.1 for CA 6121

With the PEL100 Android app, you can connect your Android device to a PEL instrument, using Bluetooth or Wi-Fi communication protocol; make a few settings, and get real time measurements.

The PEL100 Android app provides a fast, convenient and portable solution for working with a PEL instrument. And it allows you to easily connect to PEL instruments that may be placed in hard-to-reach locations.

Developments in this new version V 1.8.25 :

• Compatibility with Android 12
• Some bug fixes
• Real time measurements of engine parameters.

Concerning this last point, thanks to work based on a physical and statistical model, Chauvin Arnoux has developed a software sensor capable of providing the motor's electrical parameters.

We thus provide the motor's speed of rotation, efficiency and instantaneous torque.

An application note on this new function exists and is available on our website.

The PEL 100 application is free and remains available on GooglePlay in :

English, Czech, Danish, Dutch, Finnish, French, German, Italian, Norwegian, Polish, Russian, Chinese (Simplified), Slovak, Spanish and Swedish.

It is compatible with Android versions >= v6.0
